W-4 & W-4P

W-4&W-4P is a line array system which is made of two 12″ woofers, two 3″ titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required.

TECHNICAL PARAMETERS   技术参数
Model 型号W-4&W-4P（Active）
Type 类型Two-way line array system
Frequency Response 频率响应60Hz-18KHz±3dB
Power handling 功率LF 1200W(RMS)4800W(PEAK)
HF 240W(RMS)960W(PEAK)
Sensitivity 灵敏度LF 106dB(1W@1M)
HF 109dB(1W@1M)
Max SPL 最大声压LF 133dB(PEAK)
HF 135dB(PEAK)
Drivers单元LF 2×12″(310mm) neodymium woofer 75mm(3in)coil
HF 2×3″ neodymium compression driver with 75mm titanium diaphragm
Nominal impedance 阻抗LF 16 ohm
HF 16 ohm
Coverage 覆盖范围110°H×10°V
Connections 音箱连接LF 1(+)1(-) HF 2(+)2(-)
Connectors 输入连接2×NL4MP speakon
PHYSICAL PARAMETERS   物理参数
Finish 表面处理polyurea coatings
Enclosure Material箱体材料Birch Plywood
Crossover 分频建议LF  60Hz-1.5KHz   HF 1.5KHz-20KHz
Dimensions 外形尺寸840×341×458mm(W×H×D)
Packing Dimensions 包装尺寸920×420×540mm(W×H×D)0.21cbm
Net weight 净重40.5kg (W-4) /43.5kg(W-4P)
Gross weight 毛重50kg (W-4) /53 kg(W-4P)
POWER AMPLIFIER PARAMETERS   功放参数
Amplifier type 模块类型Switching mode amplifier,class D circuit
Power Output(RMS)额定功率2X900W/8ohm
2X1300W/4ohm
Weight 重量3.6kg
Configuration 配置The amp moduie is built inside W-4P
Keywords:Professional AudioSound systemconcert speakeractive speakerline array speakerSound equipmentoutdoor sound systemSpeaker

W-310&W-180/W-310P&W-180P

W-310&W-180 is a three-way line array system with exquisite appearance, compact structure and high sound pressure. W-310&W-180 is equipped with a newly developed DSP digital power amplifier module, which allows online test adjustment. W-310&W-180 is equipped with a variety of hoisting modes, which can be flexibly and conveniently transported, stacked, hoisted, supported, for various scenarios.

TECHNICAL PARAMETERS
ModelW-310&W-310P（Active）
Type Three-way line array system
Frequency Response65Hz-18KHz±3dB
Power handlingLF 700W(RMS)2800W(PEAK)
MF+HF 250W(RMS)1000W(PEAK)
SensitivityLF 103dB(1W@1M)
MF+HF 107dB(1W@1M)
Max SPLLF 132dB(PEAK)
MF+HF 138dB(PEAK)
DriversLF 2×10″(260mm) neodymium woofer75mm(3in)coil
MF 1×8″(210mm) neodymium woofer 50mm(2in)coil
HF 2×3″ neodymium compression driver with 75mm titanium diaphragm
Nominal impedanceLF 8 ohm
MF+HF 8 ohm
Coverage80°H×10°V
ConnectionsLF 1(+)1(-) MF+HF 2(+)2(-)
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
Enclosure MaterialBirch Plywood
CrossoverLF  65Hz-250Hz    MF+HF 250KHz-18KHz
Dimensions700×310×520mm(W×H×D)
Packing Dimensions590×780×410mm(W×H×D)0.19cbm
Net weight40kg(W-310)/44kg(W-310P)
Gross weight44kg(W-310)/48kg(W-310P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2X900W/8ohm
Weight3.6kg
ConfigurationThe amp module is built inside W-310P
TECHNICAL PARAMETERS
Model W-180&W-180P（Active）
Type Line array subwoofer system
Frequency Response35Hz-200Hz±3dB
Power handling1000W(RMS)4000W(PEAK)
Sensitivity 102dB(1W@1M)
Max SPL136dB(PEAK/1M)
Driver1×18″(460mm) woofer 100mm(4in)coil
Nominal impedance8 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
Enclosure MaterialBirch Plywood
Dimensions700×520×780mm(W×H×D)
Packing Dimensions770×590×860mm(W×H×D)/0.39cbm
Net weight63.5kg(W-180)/66kg(W180P)
Gross weight67.5kg(W-180)/70kg(W180P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)DSP 900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside W-180P





Keywords:outdoor sound systemSound systemProfessional speakerline array speakerLive soundprofessional audiosound equipmentstage

W-122/W-122P

W-122 is a two-way all-weather line array sound reinforcement system with exquisite appearance, compact structure, high sound pressure and high fidelity. *W-122 is equipped with our latest DSP switching mode amplifier module, which can be controlled online. *W-122 can be installed in a variety of combinations. which can be flexibly and conveniently used in all type of applications. *The W-122 cabinet is finished with high-grade black polyurethane paint, which is waterproof and super wear-resistant. The hanging hardware and front grille have undergone tensile strength tests and salt spray tests, making the speaker system suitable for all-weather applications. * W-122 is a bass reflex line array loudspeaker composed of a 4-inch neodymium tweeter and two 12-inch neodymium woofer. The cabinet is made of birch-wood, with a compact structure layout, symmetrical LF speakers, tweeters center.It is also equipped with a magnetic suspension system, which is safe and quick to install. * Applications:            auditorium           Stadium           club           mobile performance

TECHNICAL PARAMETERS
ModelW-122&W-122P（Active）
TypeTwo-way line array system
Frequency Response55Hz-20KHz±3dB
Power handlingLF 1000W(RMS)4000W(PEAK)
HF 120W(RMS)480W(PEAK)
SensitivityLF 108dB(1W@1M)
HF 110dB(1W@1M)
Max SPLLF 138dB(PEAK)
HF 140dB(PEAK)
DriversLF 2×12″(310mm) neodymium woofer 75mm(3in)coil
HF 1×4″ neodymium compression driver with 100mm titanium diaphragm
Nominal impedanceLF 8 ohm
HF 8 ohm
Coverage120°H×15°V
ConnectionsLF 1(+)1(-) HF 2(+)2(-)
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
Finishpolyurea coatings
Enclosure MaterialBirch Plywood
CrossoverLF  55Hz-800Hz    HF 800Hz-20KHz
Dimensions800×355×550mm(W×H×D)
Packing Dimensions875×455×620mm(W×H×D)0.246cbm
Net weight42.5kg (W-122) /47.5kg(W-122P)
Gross weight52kg (W-122) /57 kg(W-122P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier,class D circuit
Power Output(RMS)2X1200W/8ohm
Weight5kg
ConfigurationThe amp moduie is built inside W-122P

W-123/W-123P

W-123 is a high performance 3 way passive line array loudspeaker system. It’s featured with a compact enclosure, big SPL and high sensitivity.Each of this line array is housing with two 12 inch neodymium woofers, one 10 inch midrange and two 3 inch neodymium tweeters. Its unique cabinet structure and the horn design improve the sound frequency diffusion in the vertical and horizontal directions, reduce the front reflection, and ensure the horizontal sound performance is stable and smooth enough.

TECHNICAL PARAMETERS
ModelW-123&W-123P（Active）
TypeThree-way line array system
Frequency Response50Hz-18KHz±3dB
Power handling LF 1200W(RMS)4800W(PEAK)
MF 400W(RMS)1600W(PEAK)
HF 240W(RMS)960W(PEAK)
SensitivityLF 106dB(1W@1M)
MF 108dB(1W@1M)
HF 111dB(1W@1M)
Max SPLLF 132dB(PEAK)
MF 136dB(PEAK)
HF 139dB(PEAK)
DriversLF 2×12″(310mm) neodymium woofer 75mm(3in)coil
MF 1×10″(250mm)  woofer 75mm(3in)coil
HF 2×3″ neodymium compression driver with 75mm titanium diaphragm
Nominal impedanceLF 8 ohm
MF 8 ohm
HF 8 ohm
Coverage110°H×10°V
ConnectionsLF 1(+)1(-) LF 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Connectors2xNL8MP speakon
PHYSICAL PARAMETERS
Finishpolyurea coatings
Enclosure MaterialBirch Plywood
Dimensions900×380×550mm(W×H×D)
Packing Dimensions980×450×620mm(W×H×D)0.27cbm
Net weight60kg (W-123)/68kg(W-123P)
Gross weight64kg  (W-123)/72kg(W-123P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2X900W/8ohm+600W/8ohm+360W/16ohm
Weight6kg
ConfigurationThe amp module is built inside W-123P
Keywords:three wayline array system.stage speakerLive soundSpeakerline array speakerProfessional speakeraudio

W-122/W-122P（Active）

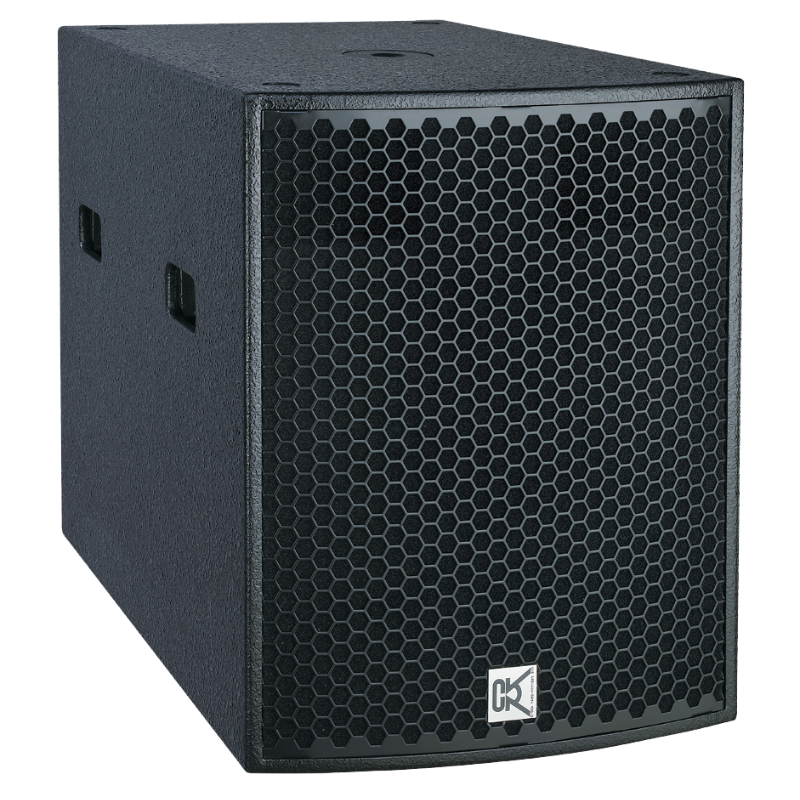

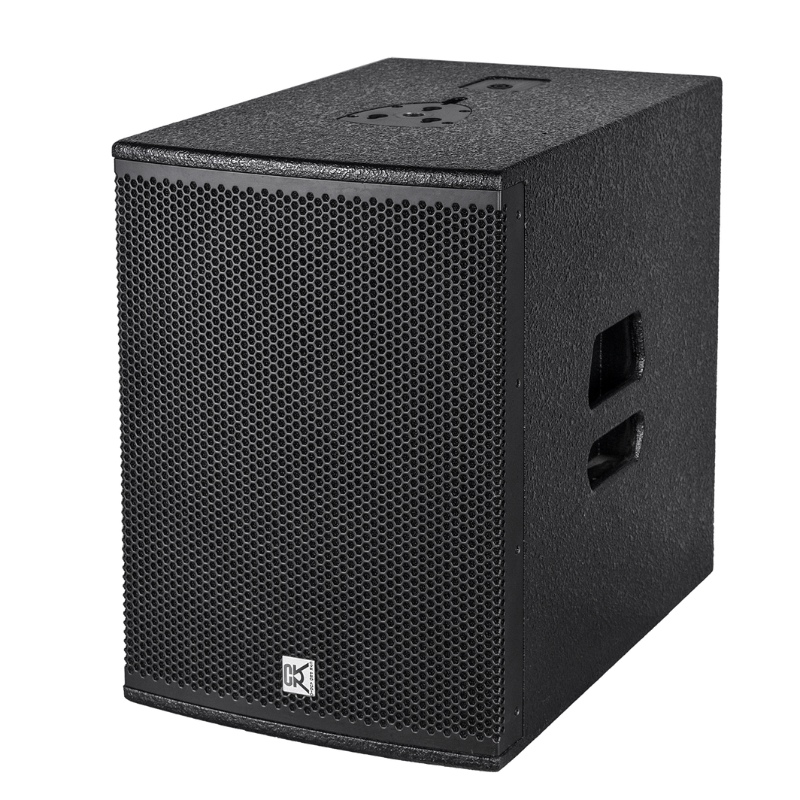

T-118B / T-118BP

T-118B&T-118BP is  a 18＂subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. The T-118BP with a power amp module 1000W/8ohm. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required

TECHNICAL PARAMETERS
ModelT-118B & T-118BP(Active)
TypeSub-bass system
Frequency Response35Hz-500Hz±3dB
Power handling800W(RMS)3200W(PEAK)
Sensitivity103dB(1W@1M)
Max SPL134dB(PEAK/1M)
Drivers1×18″(460mm) woofer 100mm(4in)coil
Nominal impedance8 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
Enclosure MaterialPlywood
Dimensions510×590×710mm(W×H×D)
Packing Dimensions590×690×790mm(W×H×D)/0.32cbm
Net weight40.5kg(T-118B)/42.5kg (T-118BP)
Gross weight45kg(T-118B) /47kg(T-118BP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier,class D circuit
Power Output(RMS)900W/8ohm
Other functionsDSP Built-in
Weight2.6kg
ConfigurationThe amp module is built inside T-18BP
Keywords:subwooferSound installationSound management systemmusical equipmentconcert speaker systemSound systemLive soundAcousticbass bin

T-218C/T-218CP



T-8

The T-8 is a full-range, compact, two-way system, ideal for installations where space is a premium. Easily outperforming loudspeakersof a larger size format, the T-8 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the T-8 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines.

TECHNICAL PARAMETERS
ModelT-8
TypeTwo-way, full-range, coaxial surface mount loudspeaker, 8 ohm or 70V/100V operation
Operating Range60 Hz – 22 kHz
Frequency Response  70 Hz – 20 kHz (±4.3 dB)
Max Input Ratings (8 ohm)150W continuous, 375W program 35 volts RMS, 77 volts momentary peak
Transformer Taps    70V/100V
                                   		120W, 60W, 30W, 15W
low impedance 120W, 60W, 30W
Sensitivity (1W/1m)95 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands)
96 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output117 dB SPL / 124 dB SPL (peak 8 ohm)
Nominal Impedance8 ohms
Minimum Impedance6.5 ohms @ 280 Hz
Nominal Coverage115°conical (+46°/ -46°, 500 Hz to 6 kHz)
Axial Q / DI5.7 / 7.6, 500 Hz to 6 kHz
Crossover Frequency1.3 kHz
Recommended Signal Processing60 Hz, 24 dB/Oct high pass filter
DriversLF 1 x 8-inch cone
HF 1 x 1.25-inch exit compression driver

Driver ProtectionSelf-resetting solid state circuit breaker
Input Connection4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure

PHYSICAL PARAMETERS
EnclosureABS plastic, matte finish, paintable
FinishBlack or white
Mounting/Rigging Provisions   Infin-A-BallTM mounting system with hidden internal wiring

GrilleDual-layer powder coated stee
EnvironmentalIP55 rated loudspeakers, IP56 rated connector
Dimensions257×470×230(W×H×D)
Weight (with bracket)8.3 kg
Gross Weight (Pairs)20 kg
Keywords:Sound installationSound management systemmusical equipmentconcert speaker systempowered speakerSound systemProfessional speaker

T-118B / T-118BP



T-504 & T-18S

T series consist of all kind of pro-loudspeakers made by 18mm plywood.The feature is of small dimension and size,dynamic power and assembled with high performance speaker unit. T series are designed with perfect audio effect and outsanding performace to meet the consumer’s needs with its reasonable price.All are with attractive appearance and small cabinets,fashionable styles and flexible combinations. T series is widely installed in the club,KTV room,bar,conference,etc.

TECHNICAL PARAMETERS

ModelT-540H
Type Line arry Column system
Frequency Response 90Hz-20kHz±3dB
Power handling120W(RMS)480W(PEAK)
Sensitivity99dB(1W@1M)
Max SPL 125dB(PEAK/1M)
DriversLF2×5″(125mm) woofer 25mm(1in)coil
HF2×1.4″neodymium compression driver with 36mm(1.4in) titanium diaphragm
Nominal impedance4 ohm
Coverage 110º H×10º V
ConnectorsConnector

PHYSICAL PARAMETERS

FinishPolyurea Coatings
Enclosure MaterialPlywood
Dimensions159.1×567.2×185mm(W×H×D)
Packing Dimensions395×633×255mm(W×H×D)/0.064cbm
Net weight7.5kg
Gross weight16.7kg



TECHNICAL PARAMETERS

ModelT-540L
TypeLine arry Column system
Frequency Response90Hz-4kHz±3dB
Power handling240W(RMS)960W(PEAK)
Sensitivity99dB(1W@1M)
Max SPL123dB(PEAK/1M)
DriversLF4×5″(125mm) woofer 25mm(1in)coil
Nominal impedance8 ohm
Coverage110º H×20º V
ConnectorsConnector

PHYSICAL PARAMETERS

FinishPolyurea Coatings
Enclosure MaterialPlywood
Dimensions159.1×598.1×185mm(W×H×D)
Packing Dimensions395×667×255mm(W×H×D)/0.067cbm
Net weight8.5kg
Gross weight19.1kg



TECHNICAL PARAMETERS

ModelT-18S&T-18SP(Active)
Type subwoofer system
Frequency Response30Hz-150Hz±3dB
Power handling1000W(RMS)4000W(PEAK)
Sensitivity 106dB(1W@1M)
Max SPL140dB(PEAK/1M)
Drivers1×18″(460mm)  woofer 100mm(4in)coil
Nominal impedance8ohm
Connectors2×NL4MP speakon

PHYSICAL PARAMETERS

Finish Polyurea Coatings
Enclosure MaterialBirch Plywood
Dimensions 550×671×825mm(W×H×D)
Packing Dimensions 620×745×895mm(W×H×D)/0.41cbm
Net weight 57kg(T-18S)/63.5kg(T-18SP)
Gross weight 61.5kg(T-18S)/68kg(T-18SP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)1×2600W/8ohm  2×900W/8ohm
Other functionsDSP Buiit-in
Weight6.5kg
ConfigurationThe amp module is built inside T-18SP which is designed topower2×T-504L 1×T-504H 1×T-18SP
Keywords:T SERIESline array column systemcvr

T 402

The T-402 is a line array column system comprised of Two 4″ neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics-phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker
TECHNICAL PARAMETERS
ModelT-402
TypeLine arry Column system
Frequency Response100Hz-18KHz±3dB
Power handling120W(RMS)480W(PEAK)
Sensitivity90dB(1W@1M)
Max SPL108dB(PEAK/1M/1W)
Speaker driver2×4″(104mm)25mm(1in)coil
Nominal impedance16 ohm
Coverage80º
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
Enclosure MaterialAluminum
Dimensions123×240×155mm(W×H×D)
Packing Dimensions165×320×310mm(W×H×D)/0.016cbm
Net weight2.5kg
Gross weight3kg
Keywords:Sound installationSound management systemmusical equipmentconcert speaker systemAcousticpowered speakerSound systemline array column system


T-218C/T-218CP

T-218C is a dual 18 inch subwoofer with super powerful bass sound effect, It is built with 2 pieces of 18 inch woofer with 4” voice coil and its enclosure is made in fine birch plywood, which makes it neat and elegant, solid in structure and less resonance.  It is an ideal  partner to all full range sound systems and suitable for outdoor events, stadium, theaters and other occasions where extreme bass is required.
TECHNICAL PARAMETERS
ModelT-218C& T-218CP(Active)
TypeDual-drivers sub-bass system
Frequency Response35Hz-200Hz±3dB
Power handling2000W(RMS)8000W(PEAK)
Sensitivity105dB(1W@1M)
Max SPL138dB(PEAK/1M)
Drivers2×18″(460mm) woofer 100mm(4in)coil
Nominal impedance4 ohm
PHYSICAL PARAMETERS
FinishTextured paint
Enclosure MaterialPlywood
Dimensions520×1160×850mm(W×H×D)
Packing Dimensions590×1240×920mm(W×H×D)/0.63cbm
Net weight90kg(T-218C)/95kg (T-218CP)
Gross weight97kg(T-218B)/102kg (T-218BP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier,class D circuit
Power Output(RMS)2x2600W/8ohm
Other functionsDSP Built-in
Weight6.5kg
ConfigurationThe amp module is built inside T-218CP
Keywords:subwooferSound management systemmusical equipmentbass binLive soundProfessional Audiooutdoor sound system

CV-28/CV-28P

The subwoofer CV-28 is a high performance sub-bass system designed for large scale venues including touring and fixed installations. It features with two 1000 watt 18″(460mm) neodymium driver units with magnet structure and suspension engineered for maximum linear excursion. Its two woofers are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy.
TECHNICAL PARAMETERS
ModelCV-28&CV-28P(Active)
TypeDual-drivers sub-bass system
Frequency Response30Hz-500Hz±3dB
Power handling2000W(RMS)8000W(PEAK)
Sensitivity103dB(1W@1M)
Max SPL135dB(PEAK/1M)
Drivers2×18″(460mm) woofer 100mm(4in)coil
Nominal impedance4 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
EnclosurePlywood
Dimensions1130×580×907mm(W×H×D)
Packing Dimensions1215×665×987mm(W×H×D)/0.8cbm
Net weight100kg(CV-28)/103kg(CV-28P)
Gross weight 107kg(CV-28)/110kg(CV-28P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x2600W/8ohm
Weight6.5kg
ConfigurationThe amp module is built inside CV-28P
Keywords:Sub-bass systemsubwooferstage speakerbass binactive speakerLive sound

CV-181C/CV-181CP

CV-181C is a single 18″ horn loaded subwoofer designed to reproduce deep bass frequency with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows  where extreme level of bass is required.
TECHNICAL PARAMETERS
ModelCV-181C&CV-181CP(Active)
TypeSub-bass system
Frequency Response40Hz-500Hz±3dB
Power handling800W(RMS)3200W(PEAK)
Sensitivity102dB(1W@1M)
Max SPL132dB(PEAK/1M)
Drivers1×18″(460mm) woofer 100mm(4in)coil
Nominal impedance8 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
EnclosurePlywood
Dimensions580×704×770.5(W×H×D)
Packing Dimensions655×775×805mm(W×H×D)/0.40cbm
Net weight50kg(CV-181C)/52kg(CV-181CP)
Gross weight55kg(CV-181C)/57kg (CV-181CP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)1000W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside CV-181CP

Keywords:Sub-bass systemsubwooferSound installationSound management systemmusical equipmentconcert speaker system

CV-152M/CV-152MP

CV-152M/CV-152MP is a two-way, full range stage monitor speaker system composed of one 15″ woofer and one 3″ titanium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications. The CV-152MP features a highly efficient power amp module.
TECHNICAL PARAMETERS
ModelCV-152M & CV-152MP(Active)
TypeTwo-way Monitor system
Frequency Response48Hz-18kHz±3dB
Power handling450W(RMS)1800W(PEAK)
Sensitivity98dB(1W@1M)
Max SPL126dB(PEAK/1M)
DriversLF 15″(380mm) woofer 75mm(3in)coil
HF 3″compression driver with 75mm titanium diaphragm
Nominal impedance8 ohm
Coverage60º H×40º V
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
EnclosurePlywood
Dimensions750×399×520mm(W×H×D)
Packing Dimensions820×470×575mm(W×H×D)/0.22cbm
Net weight32.5kg(CV-152M)/34.5kg (CV-152MP)
Gross weight36.5kg(CV-152M) 38.5kg(CV-152MP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside CV-152MP
Keywords:powered speakerTwo-way monitor systemconcert speaker systemLive soundactive speakeroutdoor sound systemstage speaker

CV-315/CV-315P

CV-315 is a three-way single 15 full range system, with solid structure, novel shape and transparent sound quality; CV-315 equipped with one 15 inch woofer with 100mm voice coil , one 10 inch mid-range driver with 75mm voice coil, and one 3 inch neodymium compression driver with 75mm voice coil.The mid and high frequency is coaxial,adopts the self-developed waveguide horn output.With  long stroke, wide frequency band, energy density and good transient. To make the layers are more distinct and the details are more prominent; The cabinet is constructed from birch plywood, with compact structure and reasonable layout It is built with a strong grill,with the sound-transmitting mesh to make the sound more balance The finish of the cabinet is with water-proof,durable and textured polyurethane coating.
TECHNICAL PARAMETERS
ModelCV-315&CV-315P(Active)
TypeThree-way Bi-amp full range system
Frequency Response45Hz-18kHz±3dB
Power handlingLF 800W(RMS)3200W(PEAK)
MF+HF 400W(RMS)1600W(PEAK)
SensitivityLF 103dB(1W@1M)
MF+HF 106dB(1W@1M)
Max SPLLF 128dB(PEAK)
MF+HF 132dB(PEAK)
DriversLF 1×15″(380mm) woofer 100mm(4in)coil
MF 10″(260mm)Mid bass75mm(3in)coil
HF 3″ neodymium compression driver with 75mm titanium diaphragm
Nominal impedanceLF 8 ohm
MF+HF 8 ohm
Coverage80º H×40º V
ConnectionsLF 1(+)1(-) Bi-amp1(+)1(-)   MF+HF2(+)2(-)
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
Connectors2×NL4MP speakon
EnclosureBirch Plywood
Dimensions472.8×900×480mm(W×H×D)
Packing Dimensions550×980×550mm(W×H×D)/0.3cbm
Net weight56kg
Gross weight61kg
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.5kg
ConfigurationThe amp module is built inside CV-315P
Keywords:Three-way Bi-amp full range systemSound installationconcert speaker systemoutdoor sound systemactive speakerLive sound

CV-152D/CV-152DP

CV-152D/CV-152DP is a 2-way, full range loudspeaker system. Its features include one high efficiency 15″ woofer and one 3″ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc. The CV-152DP features a highly efficient power amp module.
TECHNICAL PARAMETERS
ModelCV-152D & CV-152DP(Active)
TypeTwo-way, full range system
Frequency Response48Hz-18kHz±3dB
Power handling500W(RMS)2000W(PEAK)
Sensitivity100dB(1W@1M)
Max SPL127dB(PEAK/1M)
DriversLF 15″(380mm) woofer 75mm(3in)coil
HF 3″compression driver with 75mm titanium diaphragm
Nominal impedance8 ohm
Coverage80º H×50º V
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
EnclosurePlywood
Dimensions452.5×710×420mm(W×H×D)
Packing Dimensions515×785×480mm(W×H×D)/0.19cbm
Net weight32.5kg(CV-152D)/34.5kg (CV-152DP)
Gross weight35.5kg(CV-152D)/37.5kg (CV-152DP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside CV-152DP

CV-80D

CV-80D  is a coxial array system which is made of a  8＂woofer, a 1.4＂titanium neodymium compression driver. The CV-80D will integrates seamlessly with T-112B array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-80D is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
TECHNICAL PARAMETERS
ModelCV-80D
TypeTwo-way coaxial system
Frequency Response70Hz-18KHz±3dB
Power handling200W(RMS)800W(PEAK)
Sensitivity93dB(1W@1M)
Max SPL110dB(PEAK/1M)
DriversLF 1×8″(210mm)woofer 50mm(2in)coil
HF 1×1.4″compression driver with34mm titanium diaphragm
Nominal impedance8 ohm
Coverage90º
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
Enclosure MaterialPlywood
Dimensions239×314×280mm(W×H×D)
Packing Dimensions550×400×360mm(W×H×D)/0.08cbm
Net weight7.5kg
Gross weight8kg
Keywords:Two-way coaxial systemSound management systemactive speakerProfessional speakerSound systemoutdoor sound system

CV-15M/CV-15MP

The CV-15M is ultra-compact monitor featuring a coaxial 15” woofer with a 3″ compression driver, and reaches a maximum SPL of 125 dB (Peak). It can be easily switched to an active version by installing our latest P-900 switching mode power supply amplifier module. The CV-15M cabinet is made of 15mm and 18mm fine plywood, with its compact structure together ensure the durability and safety of the box. CV-15M is finished with advanced black Polyurea paint which is waterproof and super abrasion resistance.
TECHNICAL PARAMETERS
ModelCV-15M&CV-15MP(Active)
TypeTwo-way coaxial Monitor system
Frequency Response50Hz-18kHz±3dB
Power handling450W(RMS)1800W(PEAK)
Sensitivity99dB(1W@1M)
Max SPL128dB(PEAK/1M)
DriversLF 15″(380mm) woofer 75mm(3in)coil
HF 3″compression driver with 75mm titanium diaphragm
Nominal impedance8 ohm
Coverage60º H×40º V
Monitoring angle30°(Stent closed支架闭合)
45°(Bracket open支架打开)
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
EnclosurePlywood
Dimensions500×353×519.5mm(W×H×D)
Packing Dimensions590×580×423mm(W×H×D)/0.14cbm
Net weight24kg(CV-15M)/26kg(CV-15MP)
Gross weight26kg(CV-15M)/28kg(CV-15MP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside CV-15MP
Keywords:Two-way monitor systemSound installationpowered speakerProfessional speakerconcert speakerProfessional Audio

CV-253B/CV-253BP

DESCRIPTION: CV-253B is a unique three-way, bi-amp full range system. It is equipped with two 15 inch wave horn loaded woofers, one 10 inch wave horn loaded mid-range driver and one 3 inch neodymium compression driver. The Mid-Hi components are coaxial structure.Its fully loaded quality components bring out amazing power output, and the new innovative horn design ensures a wider and further coverage at the same time.The cabinet is constructed from 18mm and 24mm birchwood with an impact and weather protective PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent fabric.Two castors are hidden at the bottom,  handles are on the top and two sides of the cabinet. All these humanized designs make transportation easier for any types of indoor or outdoor applications. One of the outstanding point of CV-253B is its bi-amp swtich design brings stronger S.P.L , it can reduce distortion when it plays at its full power output.APPLICATIONSLive performance venuesStadiumsConference HallsHouses of worship

TECHNICAL PARAMETERS
ModelCV-253B&CV-253BP(Active)
TypeThree-way Bi-amp full range system
Frequency Response45Hz-18kHz±3dB
Power handlingLF 1200W(RMS)4800W(PEAK)
MF+HF 400W(RMS)1600W(PEAK)
SensitivityLF 105dB(1W@1M)
MF+HF 106dB(1W@1M)
Max SPLLF 136dB(PEAK)
MF+HF 138dB(PEAK)
DriversLF 2×15″(380mm) woofer 100mm(4in)coil
MF 10″(250mm)Mid bass75mm(3in)coil
HF 3″ neodymium compression driver with 75mm titanium diaphragm
Nominal impedanceLF 4 ohm
MF+HF 8 ohm
Coverage80º H×40º V
ConnectionsLF 1(+)1(-) Bi-amp1(+)1(-)   MF+HF2(+)2(-)
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
Connectors2×NL4MP speakon
EnclosureBirch Plywood
Dimensions473.6×1250×530mm(W×H×D)
Packing Dimensions550×1325×600mm(W×H×D)/0.44cbm
Net weight72kg
Gross weight77kg
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.6kg
ConfigurationThe amp module is built inside CV-253BP
Keywords:Three-way Bi-amp full range systemSound installationpowered speakerProfessional speakerstage speakerProfessional Audiolive sound

CV 318

CV-318 is a high performance sub-bass system composed of three 18 inch (460mm) woofers, which are all with 4 inch (100mm) voice coil. Its triple woofers are housed in a high-quality birchwood horn loading cabinet, deliver strong ultra-low frequency energy.
TECHNICAL PARAMETERS
ModelCV-318(Passive)&CV-318P(Active)
TypeThree-drivers sub-bass system
Frequency Response30Hz-150Hz±3dB
Power handling3600W(RMS)14400W(PEAK)
Sensitivity108dB(1W@1M)
Max SPL140dB(PEAK/1M)
Drivers3×18″(460mm) woofer 100mm(4in)coil
Nominal impedance2.6 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
EnclosureBirch Plywood
Dimensions1300×520×800mm(W×H×D)
Packing Dimensions1380×590×870mm(W×H×D)/0.7cbm
Net weight118kg/129kg(CV-318P)
Gross weight125kg/136kg(CV-318P)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)3x2500W/8ohm
Weight11kg
ConfigurationThe amp module is built inside CV-318P
Keywords:Sub-bass systemSound management systemLive soundSound systemsound equipment

CV-252D/CV-252DP

CV-252D is a powerful 2-way, full range loudspeaker system. Its features include two high efficiency 15″ woofers and one 3″ titanium compression driver housed ina compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc.
TECHNICAL PARAMETERS
ModelCV-252D&CV-252DP(Active)
TypeTwo-way,full range system
Frequency Response45Hz-18kHz±3dB
Power handling1000W(RMS)4000W(PEAK)
Sensitivity103dB(1W@1M)
Max SPL133dB(PEAK/1M)
DriversLF 2×15″(380mm) woofer 100mm(4in)coil
HF 3″compression driver with 75mm titanium diaphragm
Nominal impedance4ohm
Coverage60º H×50º V
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
EnclosurePlywood
Dimensions451×1204×494mm(W×H×D)
Packing Dimensions545×1295×565mm(W×H×D)/0.4cbm
Net weight67kg(CV-252D)/70kg (CV-252DP)
Gross weight72kg(CV-252D)/75kg (CV-252DP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.5kg
ConfigurationThe amp module is built inside CV-252DP
Keywords:Two-way full range systemSound installationAcousticSound systemProfessional speakerLive sound

CV-21C/CV-21CP

CV-21N is one 21″ neodynium subwoofer with bass horn loading, specifically designed to reproduce deep bass frequency with maximum efficiency, speed and impact. CV-21N can be put vertically or horizontally. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required.
TECHNICAL PARAMETERS
ModelCV-21C&CV-21CP(Active)
TypeSub-bass system
Frequency Response30Hz-400Hz±3dB
Power handling1500W(RMS)6000W(PEAK)
Sensitivity107dB(1W@1M)
Max SPL136dB(PEAK/1M)
Drivers1×21″(545mm)woofer 125mm(5in)coil
Nominal impedance8 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
Enclosure MaterialBrich Plywood
Dimensions620×649×750mm(W×H×D)
Packing Dimensions690×725×820mm(W×H×D)/0.4cbm
Net weight62.5kg(CV-21N)/65.5kg(CV-21NP)
Gross weight68kg(CV-21N)/71kg(CV-21NP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.5kg
ConfigurationThe amp module is built inside CV-21CP
Keywords:Sub-bass systempowered speakerstage speakerLive soundsound equipment

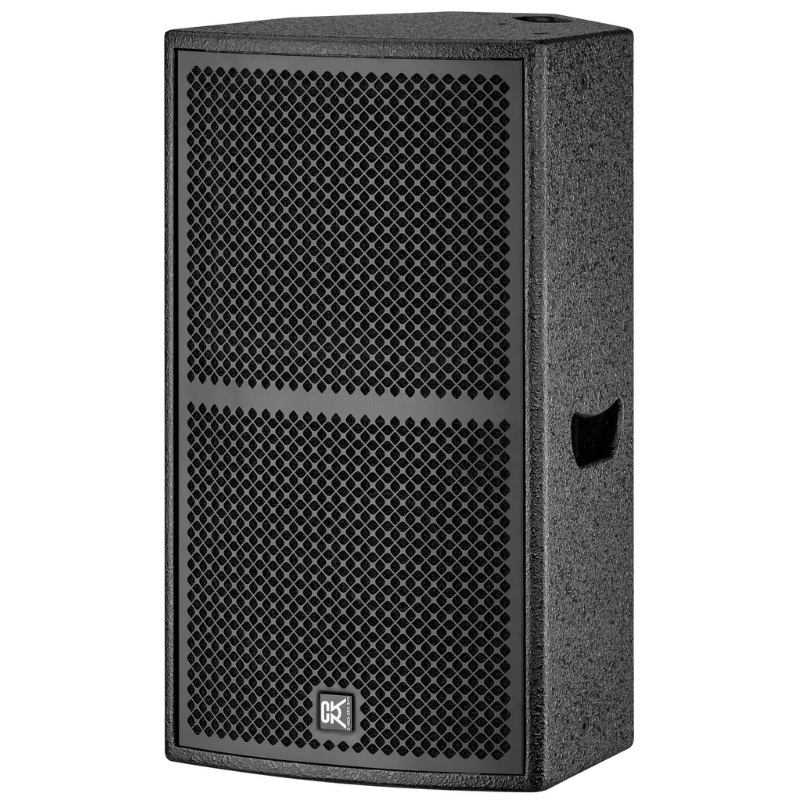

Q-15C/Q-15CP

Q-15B is a 2-way full range loudspeaker system. Its features include a high efficiency 15″ woofer and one 2.5″ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs,theaters, halls, discos, conferences, etc.
TECHNICAL PARAMETERS
ModelQ-15C & Q-15CP(Active)
TypeTwo-way, full range system
Frequency Response55Hz-18kHz±3dB
Power handling450W(RMS)1800W(PEAK)
Sensitivity98dB(1W@1M)
Max SPL129dB(PEAK/1M)
DriversLF 15″(380mm) woofer 75mm(3in)coil
HF 3″compression driver with 75mm titanium diaphragm
Nominal impedance8 ohm
Coverage80º H×50º V
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
Enclosure MaterialPlywood
Dimensions432×714×429mm(W×H×D)
Packing Dimensions505×800×500mm(W×H×D)/0.2cbm
Net weight29kg(Q-15C)/31kg(Q-15CP)
Gross weight32.5kg(Q-15C)/34kg(Q-15CP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside Q-15CP
Keywords:Two-way full range systemSound systemLive soundstage speakerprofessional audiolive sound

Q-12C/Q-12CP

Q-12B is a 2-way, full range loudspeaker system. Its features include one high efficiency 12″ woofer and one 1.75″ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, auditorium, discos, conference rooms, etc.
TECHNICAL PARAMETERS
ModelQ-12C & Q-12CP(Active)
TypeTwo-way,full range system
Frequency Response65Hz-18kHz±3dB
Power handling350W(RMS)1400W(PEAK)
Sensitivity97dB(1W@1M)
Max SPL126dB(PEAK/1M)
DriversLF 12″(310mm) woofer 75mm(3in)coil
HF 1.75″compression driver with 44mm titanium diaphragm
Nominal impedance8 ohm
Coverage80º H×50º V
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
Enclosure MaterialPlywood
Dimensions360×635×376mm(W×H×D)
Packing Dimensions430×715×445mm(W×H×D)/0.14cbm
Net weight22.5kg(Q-12C)/23kg(Q-12CP)
Gross weight25kg(Q-12C)26.5kg(Q-12CP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)900W/8ohm
Weight2.6kg
ConfigurationThe amp module is built inside Q-12CP
Keywords:Sub-bass systemSound installationactive speakerconcert speakerProfessional Audioprofessional audio

Q-218C/Q-218CP

Q-218B is a dual 18″ subwoofer, specifically designed to reproduce deep bass frequency with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, club and outdoor shows where extreme level of bass is required.
TECHNICAL PARAMETERS
ModelQ-218C & Q-218CP(Active)
TypeDual-drivers sub-bass system
Frequency Response35Hz-500Hz±3dB
Power handling1200W(RMS)4800W(PEAK)
Sensitivity102dB(1W@1M)
Max SPL133dB(PEAK/1M)
Drivers2×18″(460mm) woofer 100mm(4in)coil
Nominal impedance4 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTexture paint
Enclosure MaterialPlywood
Dimensions1020×530×820mm(W×H×D)
Packing Dimensions1095×605×890mm(W×H×D)/0.59cbm
Net weight73kg(Q-218C)/76kg(Q-218CP)
Gross weight81kg(Q-218C)/84kg(Q-218CP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.6kg
ConfigurationThe amp module is built inside Q-218CP
Keywords:musical equipmentProfessional speakerLive soundpa speakersProfessional AudioAcoustic

Q-10C/Q-10CP

Q-10B is a 2-way, full range loudspeaker system. Its features include one high efficient 10″ woofer and one 1.4″ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, heaters, halls, discos, conferences, etc.

TECHNICAL PARAMETERS
ModelQ-10C & Q-10CP(Active)
TypeTwo-way,full range system
Frequency Response65Hz-20kHz±3dB
Power handling300W(RMS)1200W(PEAK)
Sensitivity95dB(1W@1M)
Max SPL123dB(PEAK/1M)
DriversLF 10″(260mm) woofer 65mm(2.5in)coil
HF 1.4″compression driver with 34mm titanium diaphragm
Nominal impedance8 ohm
Coverage90º H×60º V
PHYSICAL PARAMETERS
Connectors2×NL4MP speakon
FinishTextured paint
Enclosure MaterialPlywood
Dimensions295×475×317mm(W×H×D)
Package Dimensions385×550×365mm(W×H×D)/0.08cbm
Net weight13.5kg(Q-10C)/15kg(Q-10CP)
Gross weight15.5kg(Q-10C)/17kg(Q-10CP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)400W/8ohm
Weight1.1kg
ConfigurationThe amp module is built inside Q-10CP

Keywords:Two-way full range systemSound installationstage speakerprofessional audiolive soundProfessional speaker

K-28N/K-28NP

The subwoofer K-28N is a high performance sub-bass system designed for large scale venues including touring and fixed installations.It features with two 1000 watt 18″(460mm) nedoymium driver umits with magnet structure and supension engineered for maximum linear excursion .Its two woofer are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy.
TECHNICAL PARAMETERS
ModelK-28N& K-28NP(Active)
TypeDual-drivers sub-bass system
Frequency Response30Hz-500Hz±3dB
Power handling2400W(RMS)9600W(PEAK)
Sensitivity106dB(1W@1M)
Max SPL138dB(PEAK/1M)
Drivers2×18″(460mm) neodymium woofer 100mm(4in)coil
Nominal impedance4 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured high-density polyurethane coating
EnclosurePlywood
Dimensions1100×500×800mm(W×H×D)
Packing Dimensions1175×575×875mm(W×H×D)/0.59cbm
Net weight81kg(K-28N)/85kg(K-28NP)
Gross weight85kg(K-28N)/91kg(K-28NP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.6kg
ConfigurationThe amp module is built inside K-28NP
Keywords:Sub-bass systemSound management systempowered speakerstage speakerProfessional Audioactive speaker

K-25N/K-25NP

The subwoofer K-25N is a high performance sub-bass system designed for large scale venues including touring and fixed installations.It features with two 800 watt 15″(380mm) nedoymium driver umits with magnet structure and supension engineered for maximum linear excursion .Its two woofer are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy. The K-25N extends low-bass response and high efficiency is required from a relatively compact enclosure.In addition,K-25N is ideal for fixed sound installations such as discos,nightclubs,halls,conference centers and commercial events.
TECHNICAL PARAMETERS
ModelK-25N&K-25NP(Active)
TypeDual-drivers sub-bass system
Frequency Response40Hz-500Hz±3dB
Power handling1600W(RMS)6400W(PEAK)
Sensitivity102dB(1W@1M)
Max SPL135dB(PEAK/1M)
Drivers2×15″(380mm) neodymium woofer 100mm(4in)coil
Nominal impedance4 ohm
Connectors2×NL4MP speakon
PHYSICAL PARAMETERS
FinishTextured paint
EnclosureBrich Plywood
Dimensions700×440×800(W×H×D)
Packing Dimensions770×510×870mm(W×H×D)/0.34cbm
Net weight49kg(K-25N)/53kg(K-25NP)
Gross weight52kg(K-25N)/56kg(K-25NP)
POWER AMPLIFIER PARAMETERS
Amplifier typeSwitching mode amplifier, class D circuit
Power Output (RMS)2x900W/8ohm
Weight3.6kg
ConfigurationThe amp module is built inside K-25NP
Keywords:Sub-bass systemmusical equipmentpowered speakerProfessional speakerconcert speakerstage speaker
